Out Of Stock

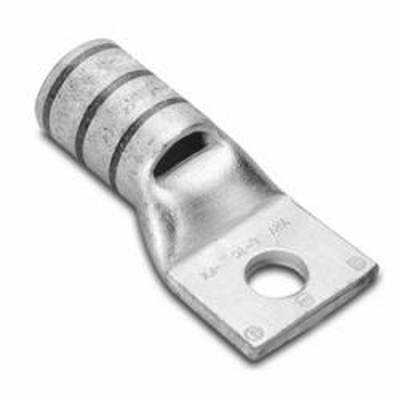

Burndy YA34LTC12FX, 350 MCM, 1/2 inch One Hole Short Barrel Lug
Product Details
Learn everything you want to know about this product to make an informed purchaseBurndy YA34LTC12FX, 350 MCM, 1/2 inch One Hole Short Barrel Lug w/ Inspection Window
Description
Hylug Copper Tubing Compression Lug, 1 Hole With Inspection Window, 0.52 Inch Bolt Hole Size, 1/2 Inch Stud, Electro-Tin Plated, Standard Barrel
Hole Size:
1/2 Inch
Voltage Rating:
600-35kV Volts
Lug Material:
Copper
Color Code:
Blue
Wire Size
Flexible (Class G,H,I) 350 MCM Wire, 350 MCM Copper Solid, 350 MCM Copper Stranded, 350 MCM DLO.
Standards
UL Listed
CSA Certified
RoHS Compliant
Spec Sheet
| Stocked | Yes |
|---|---|
| Wire Size | 30 AWG |
| Lug Size | 350 MCM |
| Barrel Size | Short |
| Number of Holes | 1 |
| Stud Hole Size | 1/2 in. |
