Out Of Stock
Belden 83337E 16 AWG, 3 Conductors, Teflon Insulation, Teflon Jacket, Mil-W-16878/4 (Type E), 200°C
Belden 83337E 16 AWG, 3 Conductors, Teflon Insulation, Teflon Jacket, Mil-W-16878/4 (Type E), 200
SKU
BEL83337E-FT
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description

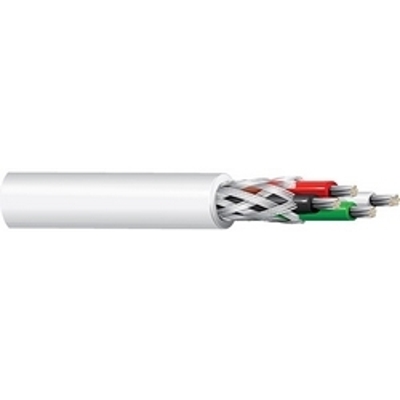

Belden 83337E - 16 AWG stranded (19x29) silver-plated copper conductors, cabled and color-coded, extruded TFE Teflon® insulation, silver-plated copper braid shield (85% coverage), TFE teflon tape-wrapped jacket.
Spec Sheet
View Spec Sheet for Complete Details (PDF)
| Belden 83337E Specifications | |
| Conductor Size AWG: | 16AWG |
| Conductor Stranding: | 19/29 |
| Conductors: | 3 |
| Conductor Material: | SPC - Silver Plated Copper |
| Outside Diameter: | 0.209 in |
| Insulation Material: | TFE - Tetrafluoroethylene |
| Jacket Material: | TFE - Tetrafluoroethylene |
| Jacket Color: | White |
| Stocked | Yes |
|---|---|
| Wire Size | 30 AWG |
| # of Conductors | 3 Conductors |
| O.D. (Inches) | 0.209 |
| Manufacture | Belden |
