    Belden 5101FE 14 AWG 3 Commercial Audio System Cable

    Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
    500 ft.
    1,000 ft.
    Add a length

     Free Shipping on all orders over $1000

    Belden 5101FE 14 AWG 3 Conductor Shielded Commercial Audio System Cable

    SKU
    BEL5101FE

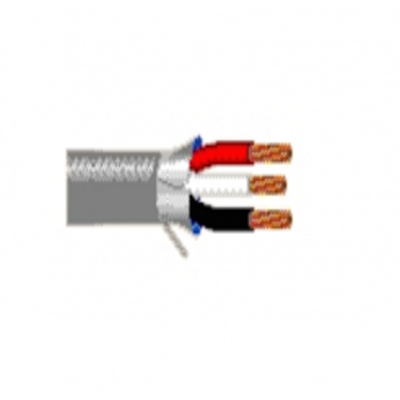

    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    General Description
    Belden 5101FE - 14 AWG Security & Alarm, Riser-CMR Cable. Bare copper conductors, PVC insulation, cabled, Beldfoil® shield tape (foil side out) with drain wire, Gray PVC jacket with rip cord. Sequential footage marking every two feet.

    Applications
    - Security Systems
    - Intercom/PA Systems
    - Sound/Audio Systems
    - Power-Limited Controls


    Spec Sheet

    Belden 5300FE Spec SheetView Spec Sheet for Complete Details (PDF)

    Specifications
    Conductor Size AWG: 3-14AWG
    Conductor Material: Bare Copper
    Outside Diameter: .253 in
    Jacket Color: Gray
    Jacket Material: PVC (Polyvinyl Chloride)



    More Information
    StockedYes
    Wire Size14 AWG
    # of Conductors3 Conductors
    O.D. (Inches)0.253
    Ampacity 8
    ManufactureBelden
