Belden 1192A, 24AWG, 4c, Star Quad, Low Impedance Cable
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description

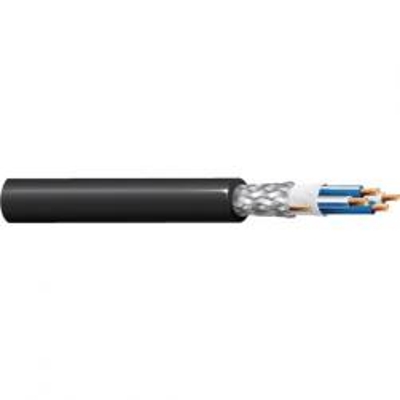

Belden 1192A - 24 AWG stranded (42x40) high-conductivity bare copper conductors, polyethylene insulation, tinned copper braid shield (95% coverage), PVC jacket.
Spec Sheet
View Spec Sheet for Complete Details
| Belden 1192A - Specifications | |
| Size: | 24 AWG |
| Conductors: | 4 |
| Stranding: | 42x40 |
| Conductor Material: | SBC - Soft Bare Copper |
| Outside Diameter: | .245 inches |
| Impedance: | 40 OHM |
| Jacket Color: | Black |
| Jacket Material: | PVC - Polyvinyl Chloride |
| Shield Type: | TC - Tinned Copper Braid Shielded 95% |
| Stocked | Yes |
|---|---|
| Wire Size | 30 AWG |
| # of Conductors | 4 Conductors |
| Manufacture | Belden |
